JumpCloud SAML Configuration¶
1. Login to JumpCloud as an administrator¶
Login as an administrator then go to the SSO Applications page

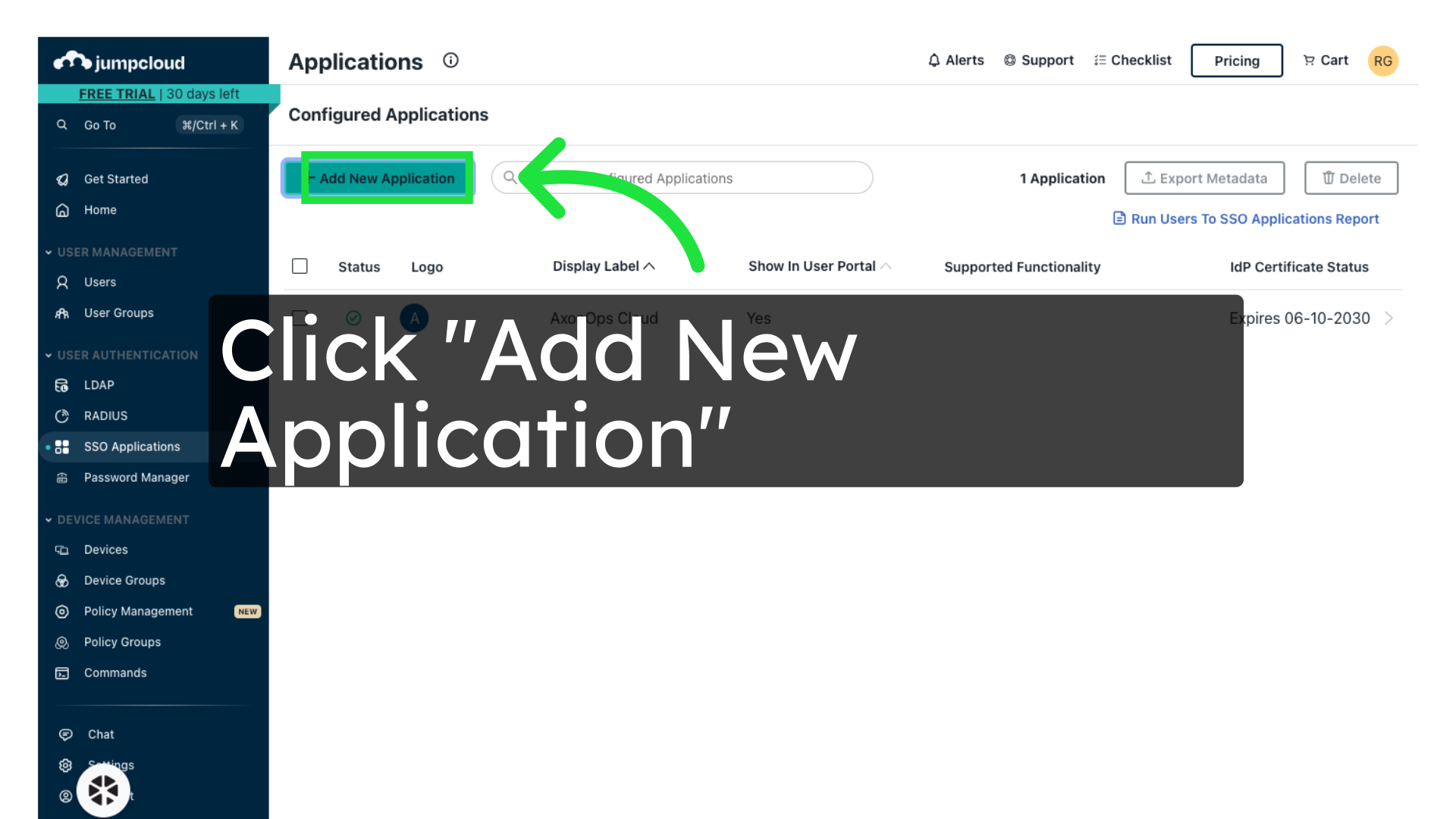

2. Click "Add New Application"¶
Add a new application.

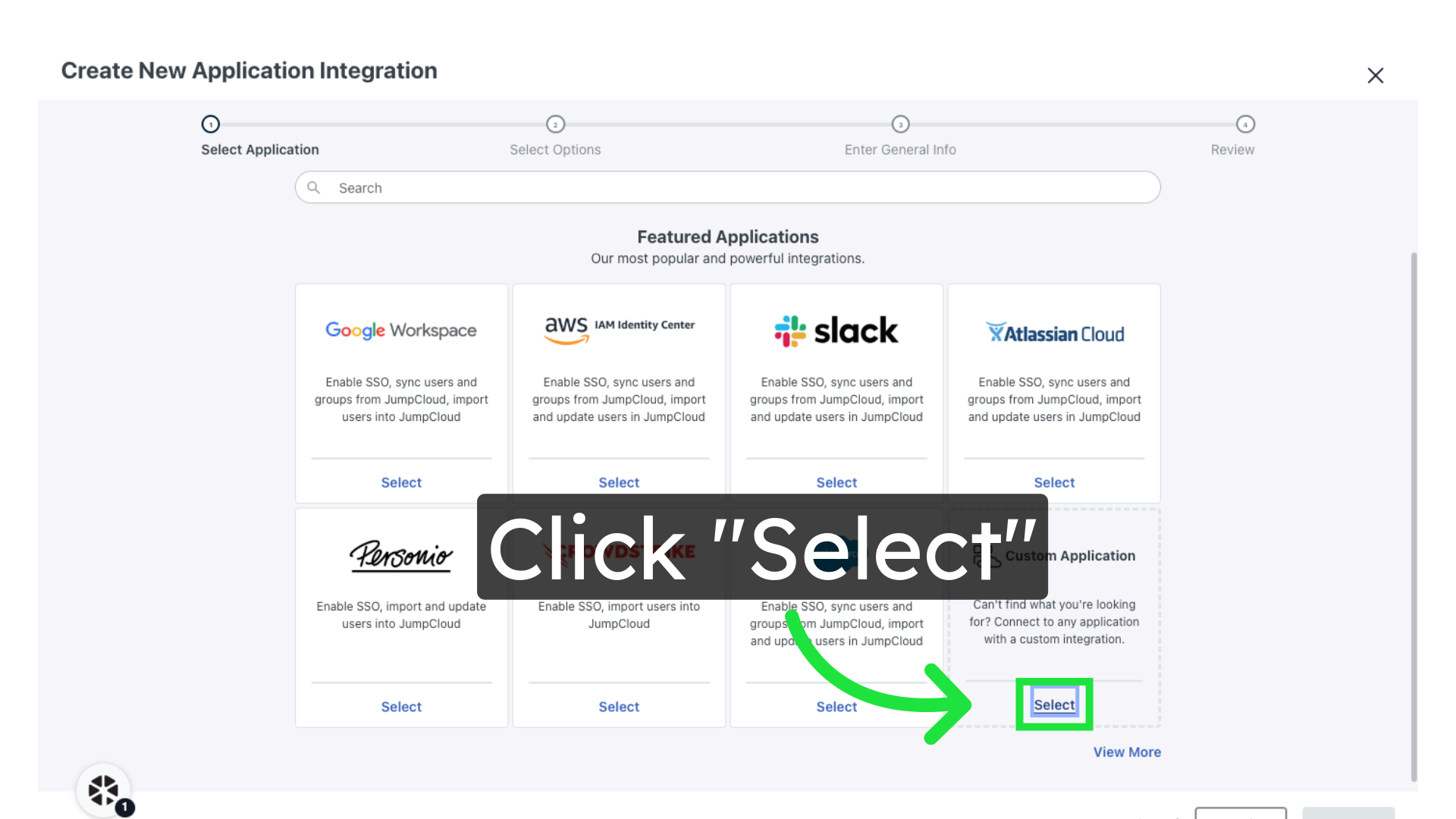

3. Select Custom Application¶

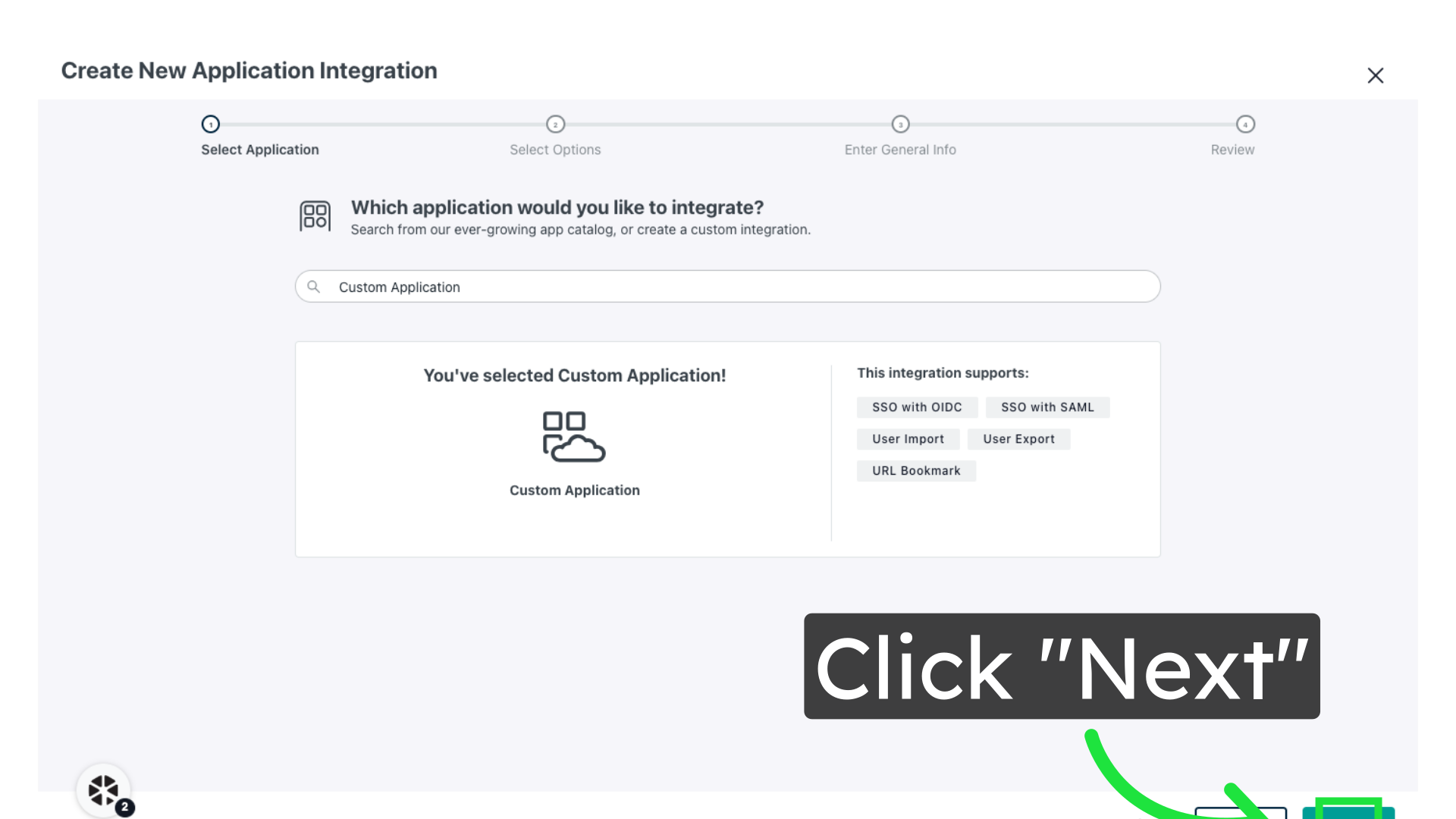

4. Click "Next"¶
Proceed to the next step.

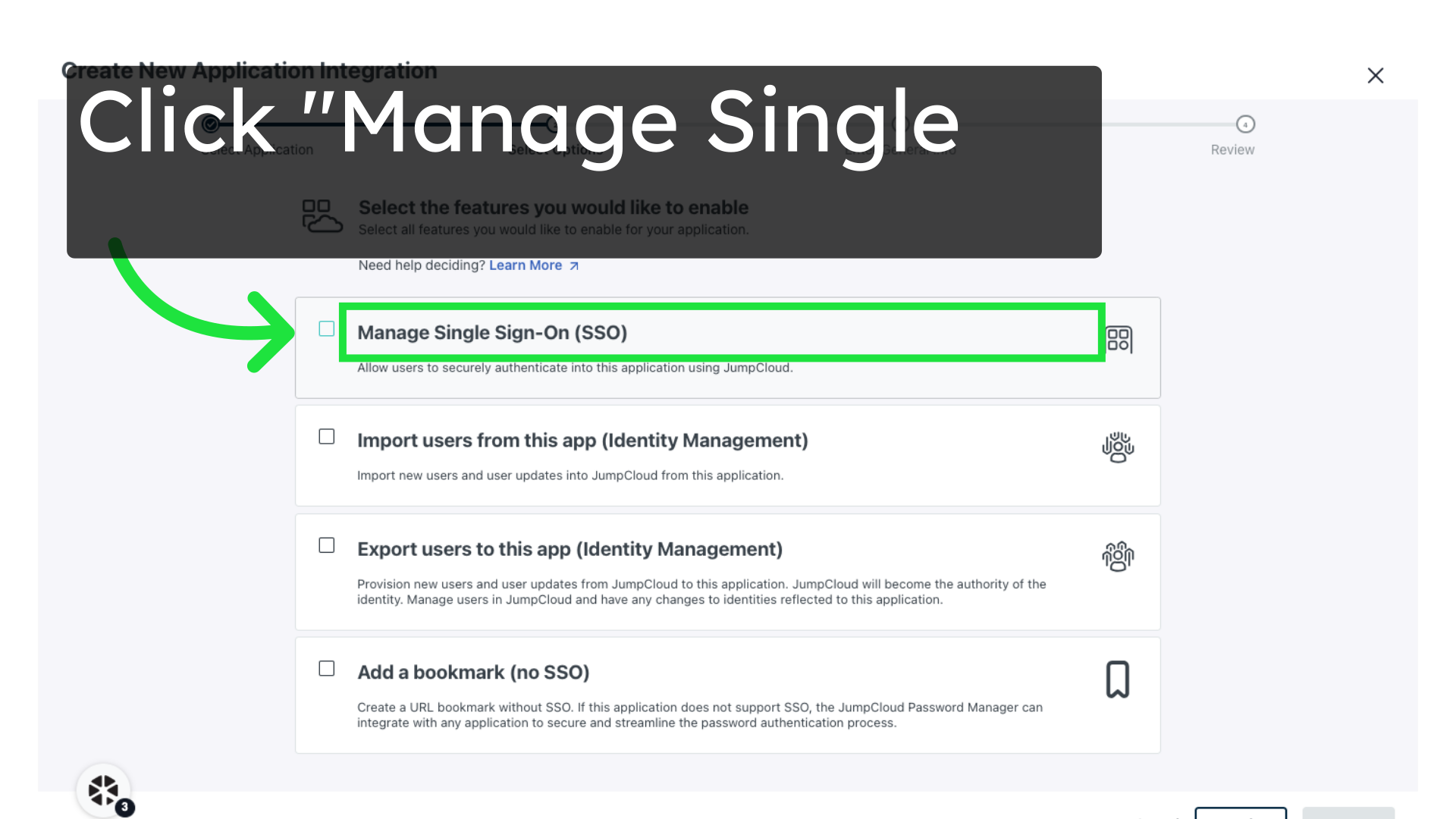

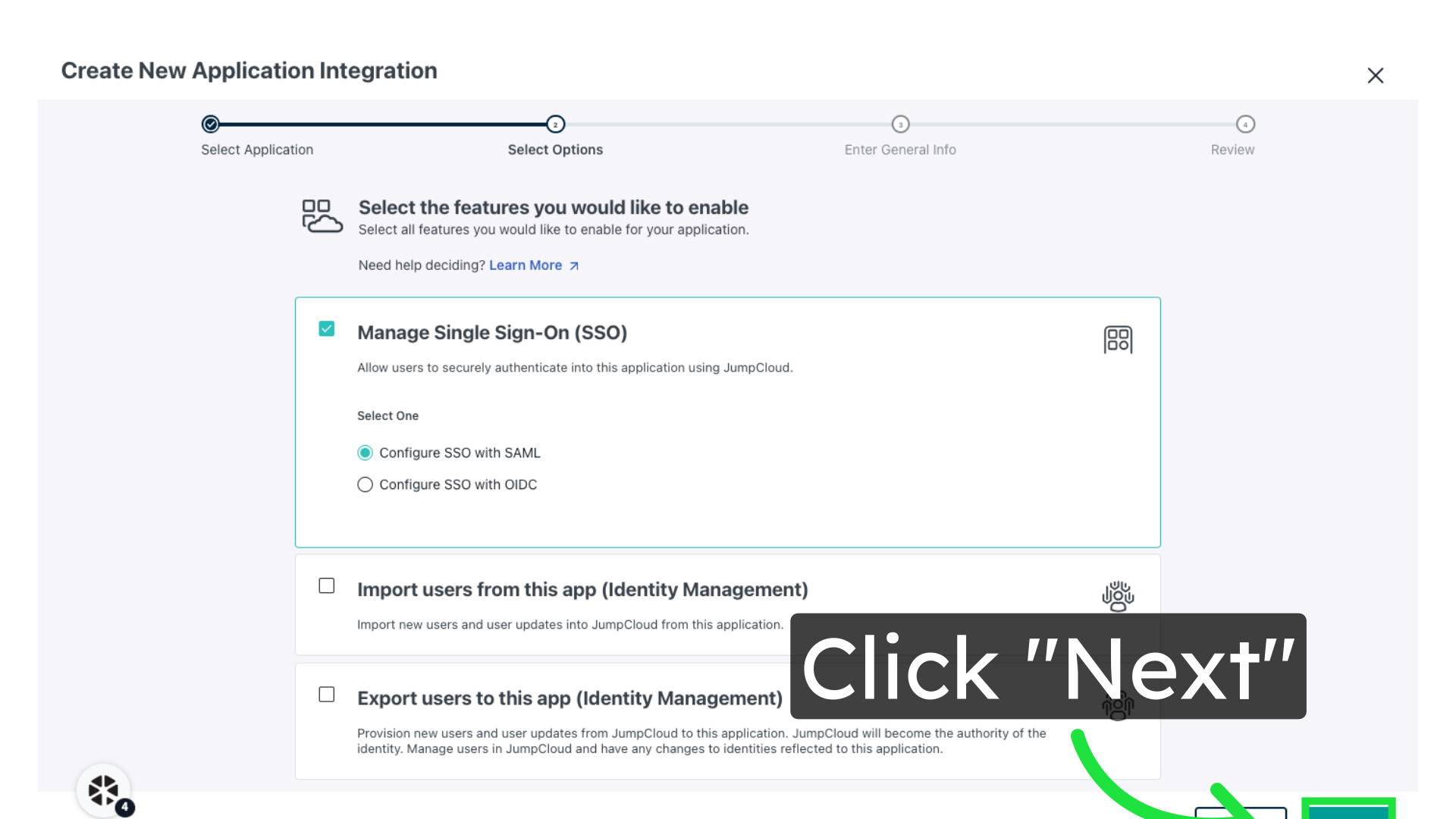

5. Click "Manage Single Sign-On (SSO)"¶
Access Single Sign-On settings.
6. Click "Next"¶
Move on to the next section.

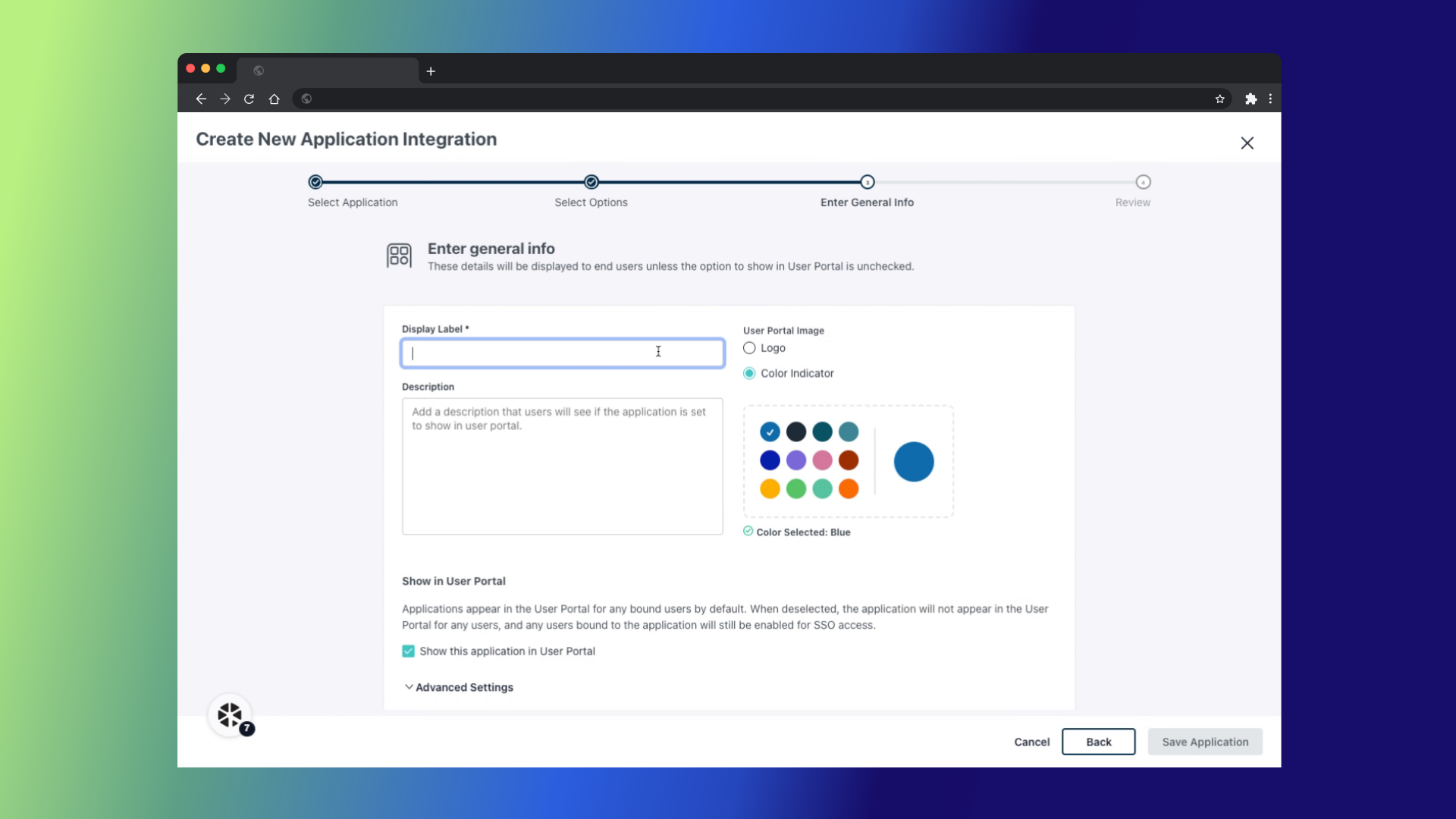

7. Enter Application Name¶
Enter a friendly name for the application in the Display Label field

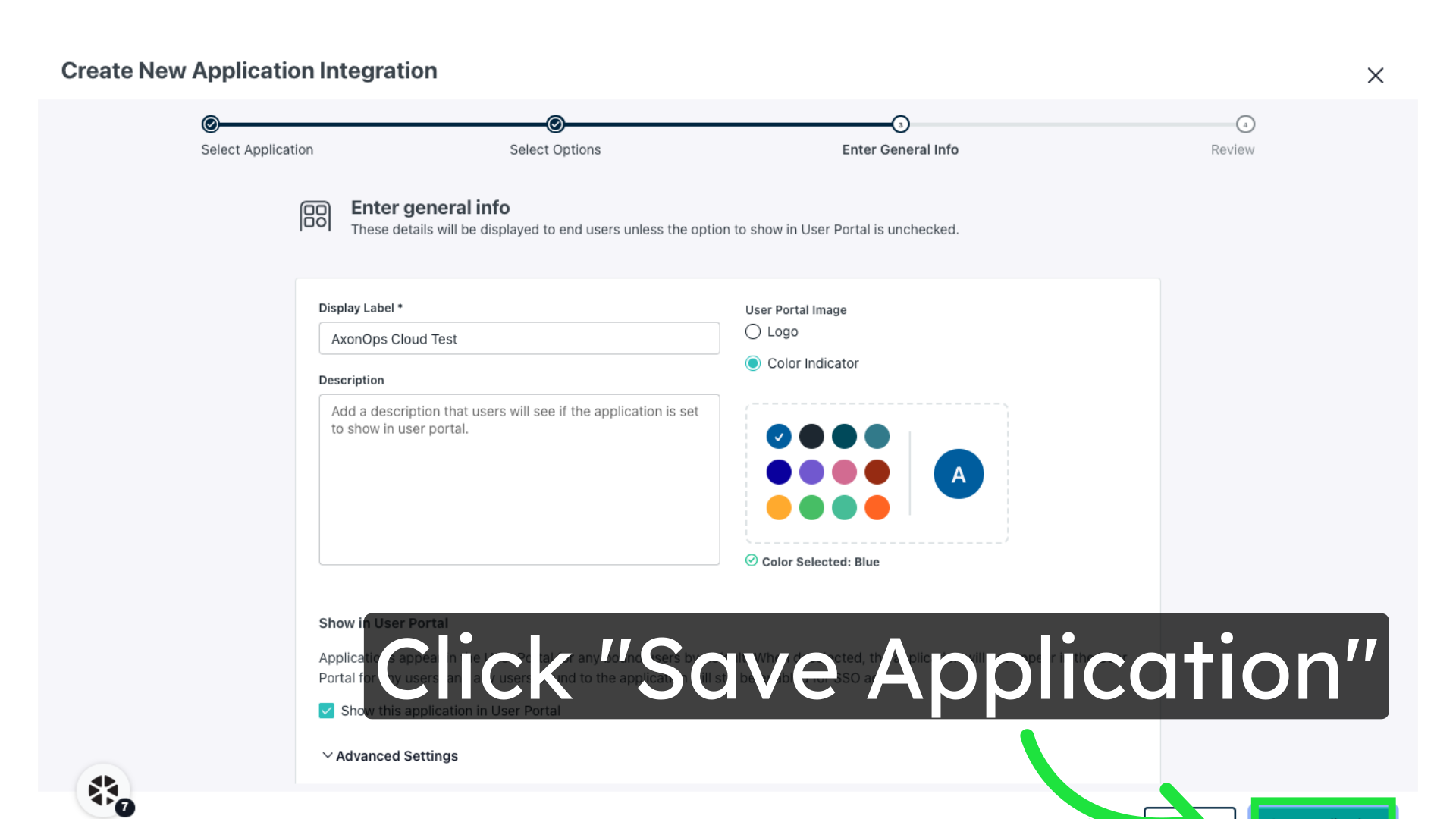

8. Click "Save Application"¶
Save the application settings.

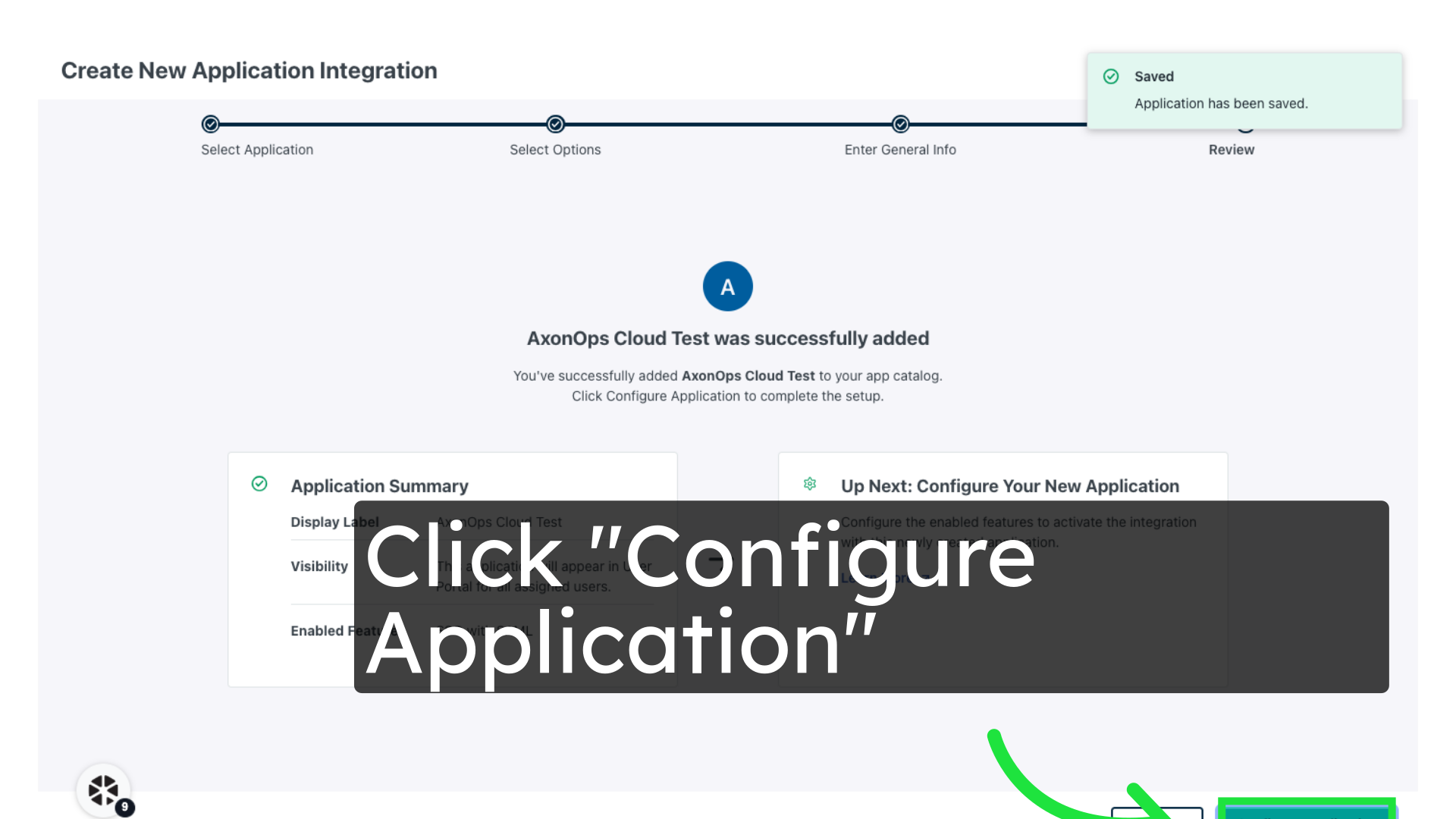

9. Click "Configure Application"¶
Configure the application settings.
12. Click "IdP Entity ID"¶
Enter the IdP Entity ID.
10. Enter the IdP Entity ID¶
This can be any string as long as the same is used in AxonOps. We recommend setting this to jumpcloud-axonops.

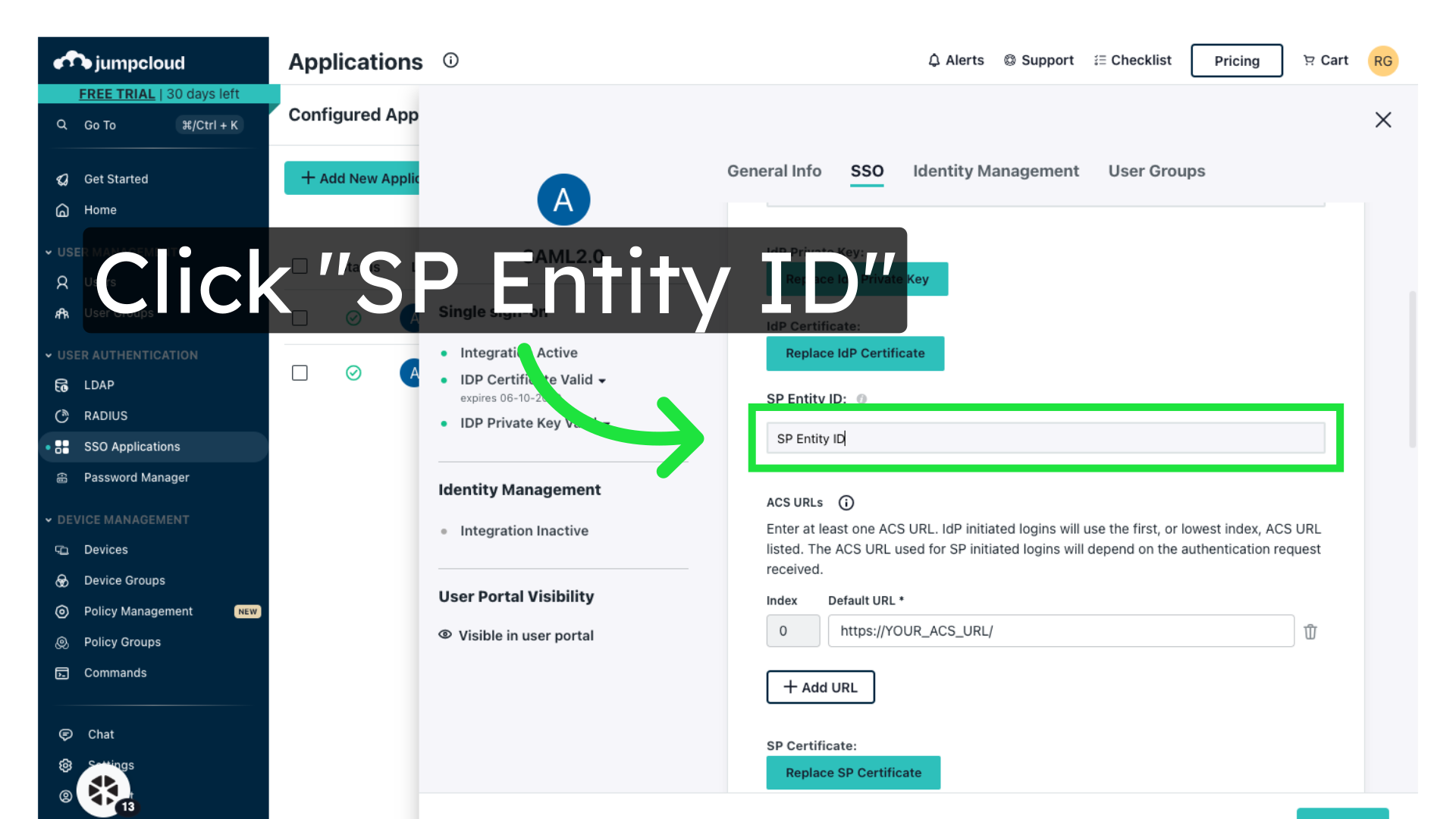

11. Enter the SP Entity ID¶
Enter https://axonops.com/saml/metadata in the SP Entity ID field

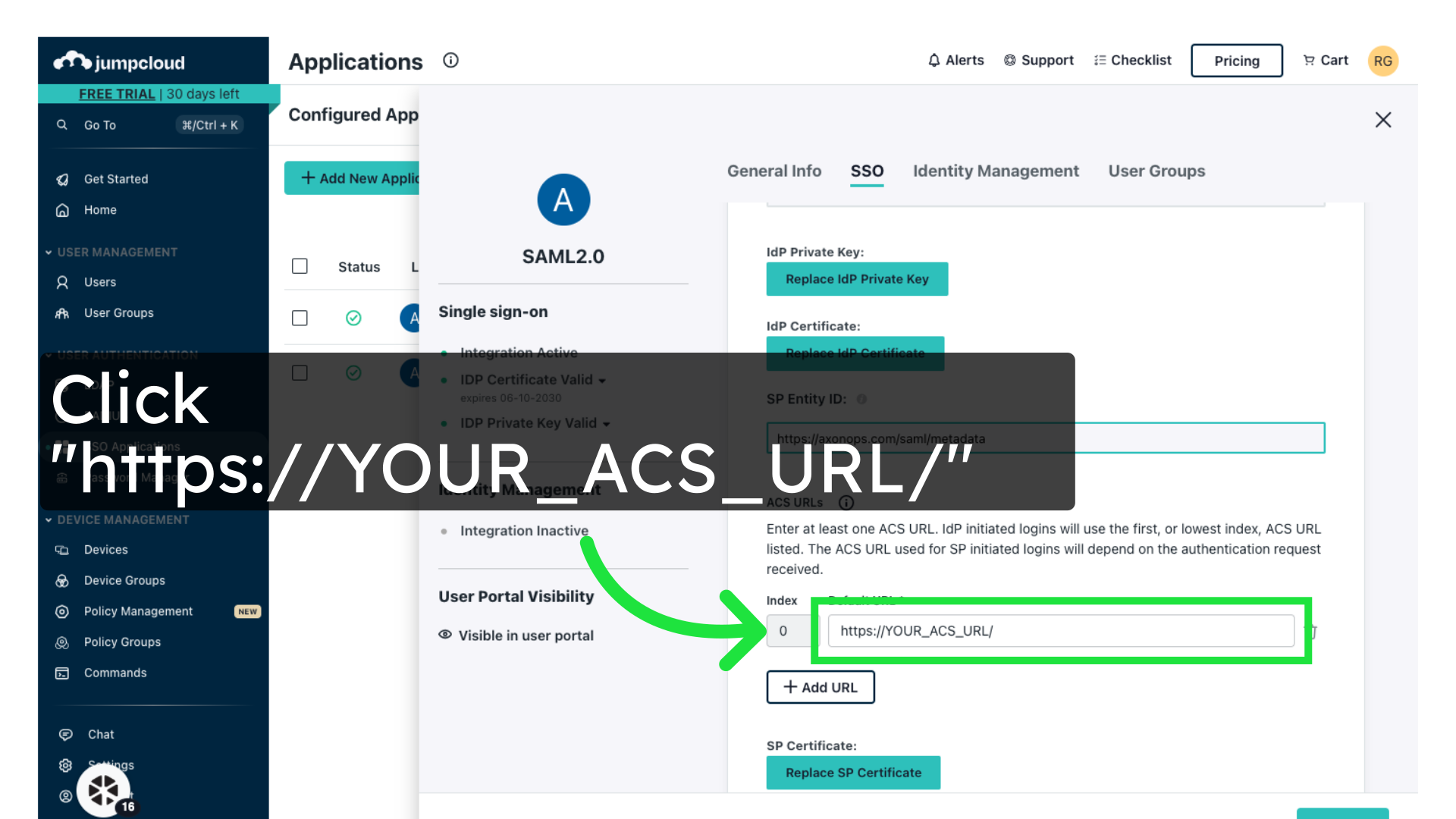

12. Set the ACS URL¶
Enter https://orgname.axonops.cloud/login-idp/callback in the ACS URL field (replace orgname with your AxonOps organisation name)

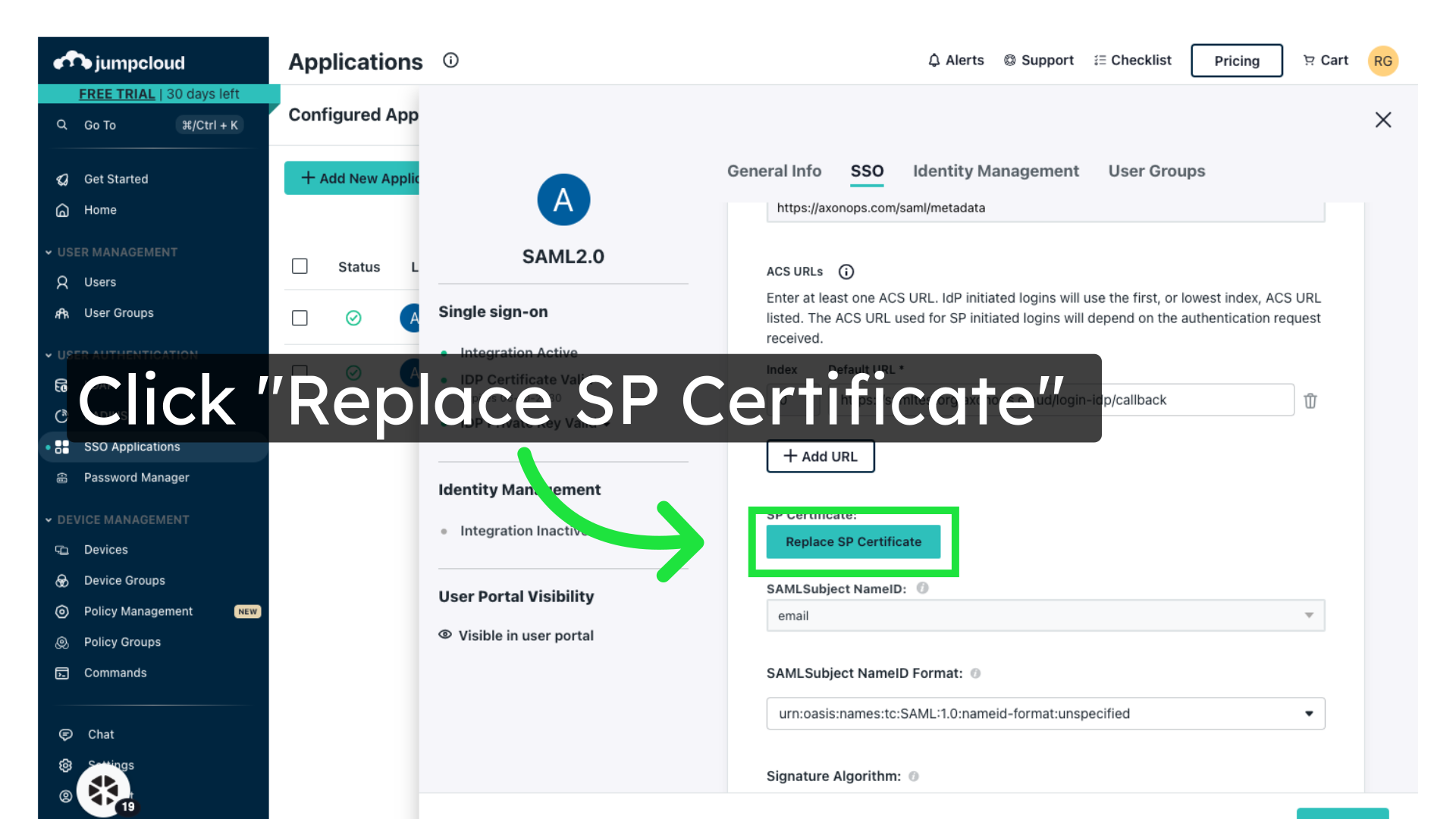

13. Click "Replace SP Certificate"¶
Upload the certificate you generated in the prerequisites

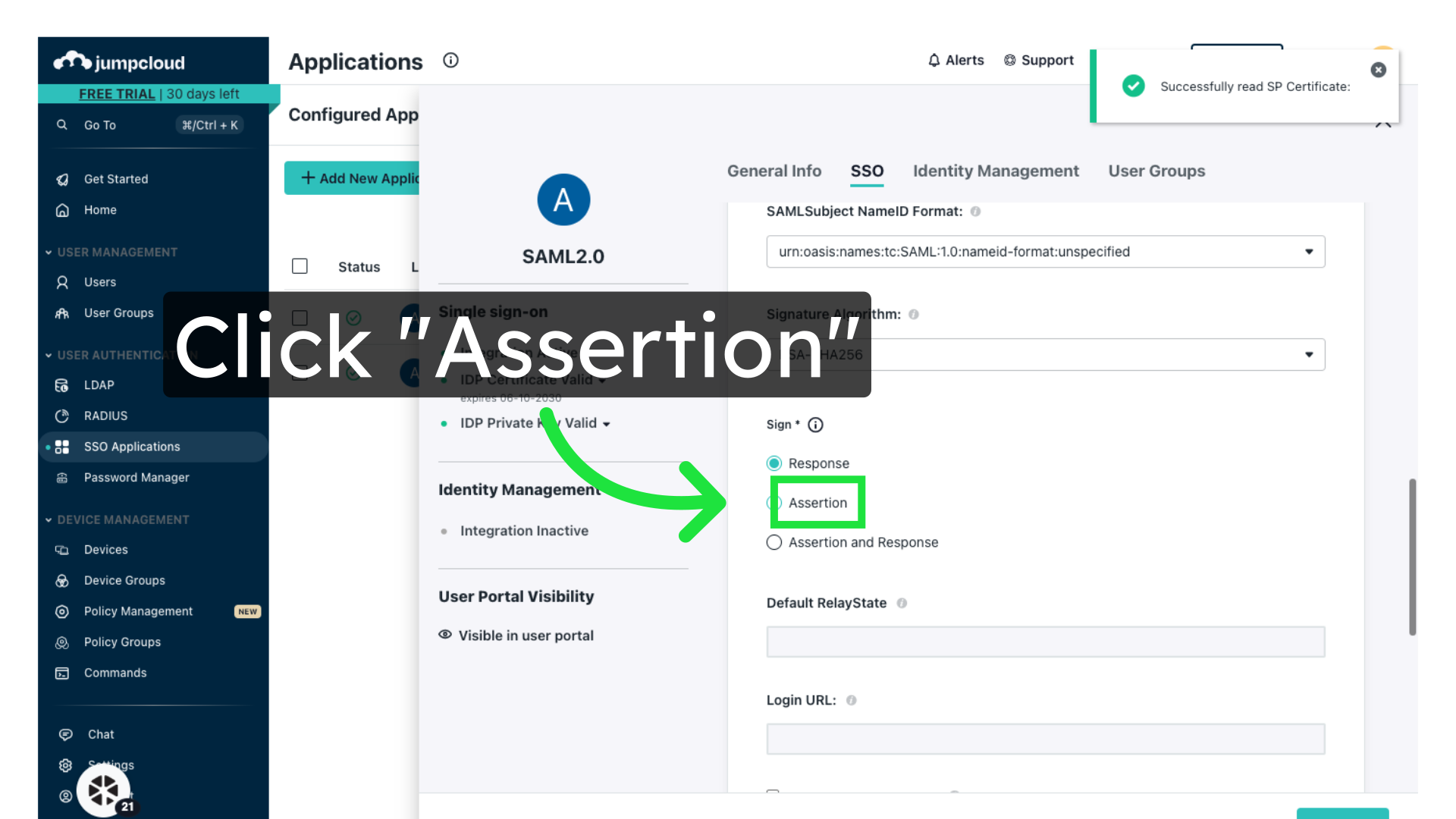

14. Configure Assertion signing¶
Under the Sign option, select Assertion

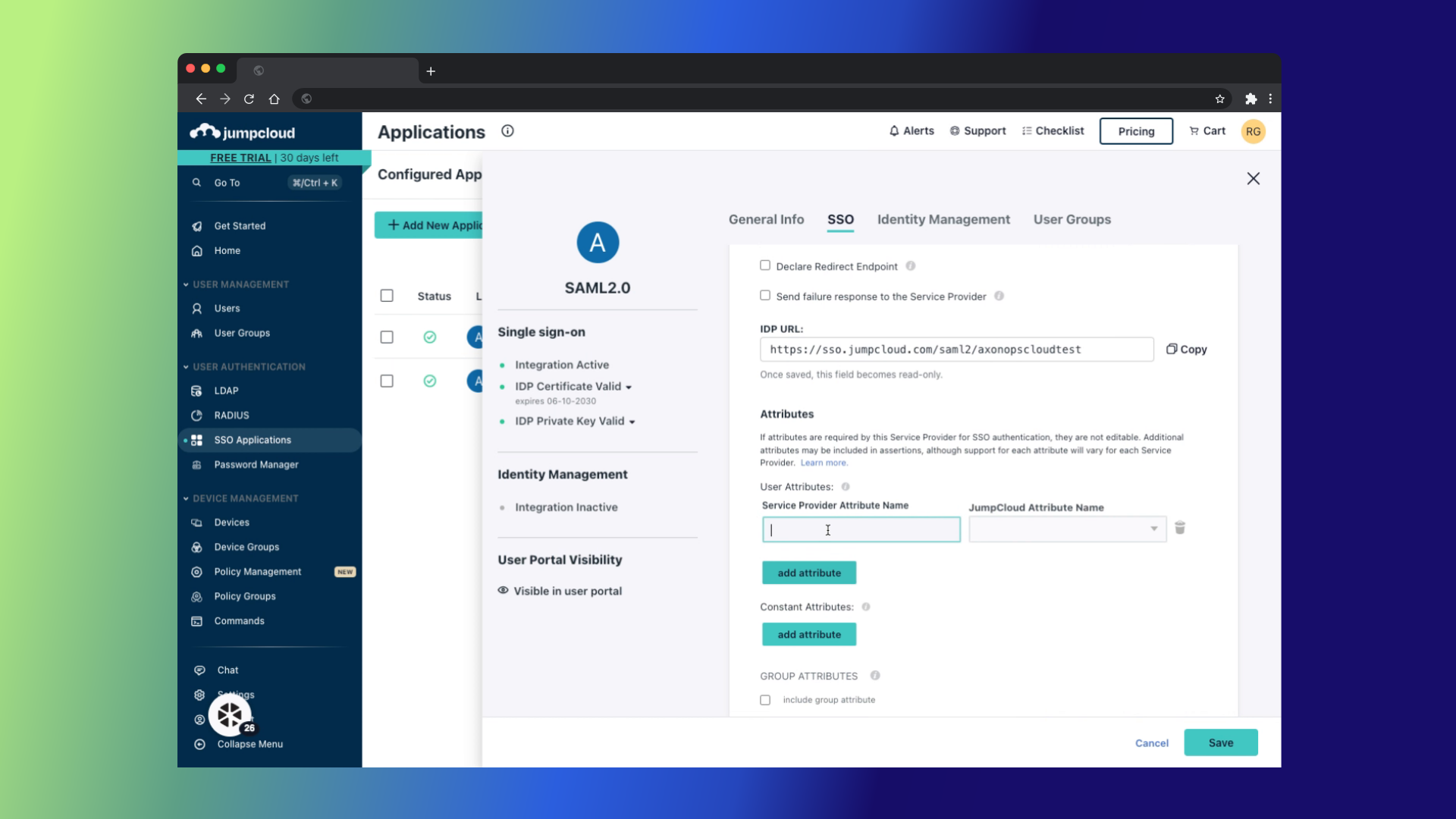

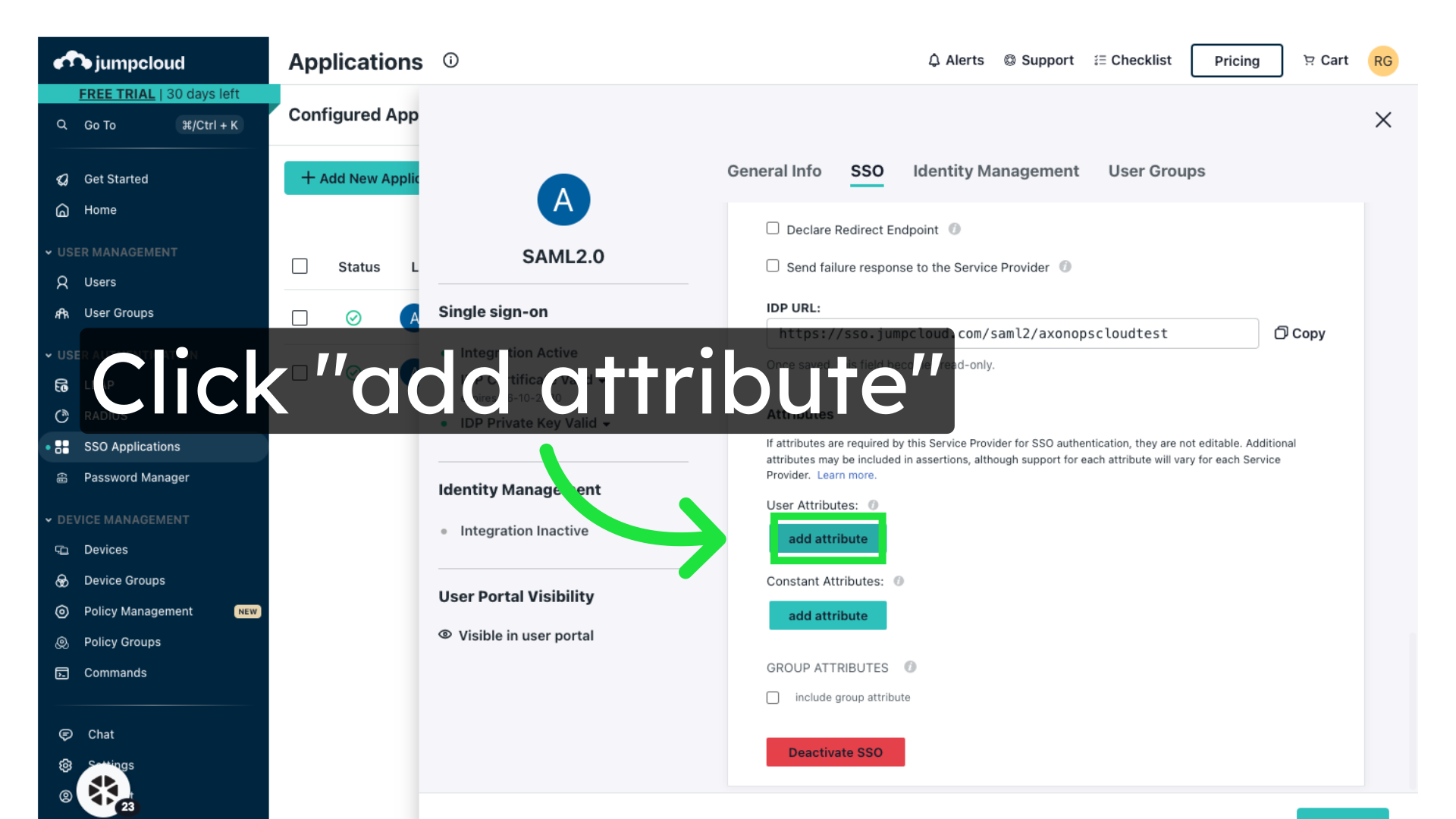

15. Configure user attributes¶
Under User Attributes, click "add attribute"

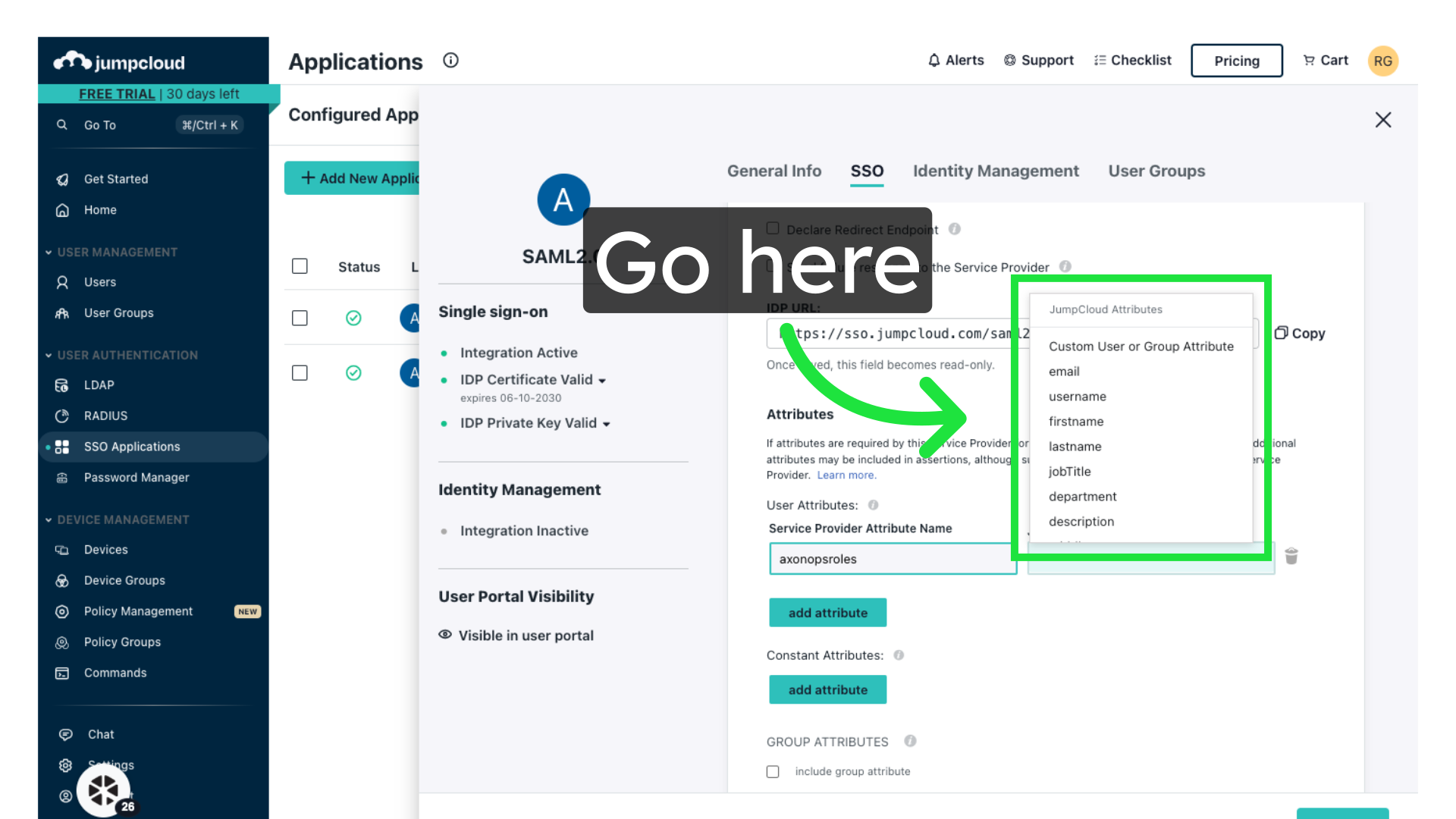

16. Configure attribute mapping¶
Enter axonopsroles in the "Service Provider Attribute" field
Now select Custom User or Group Attribute and enter a custom value of axonopsroles

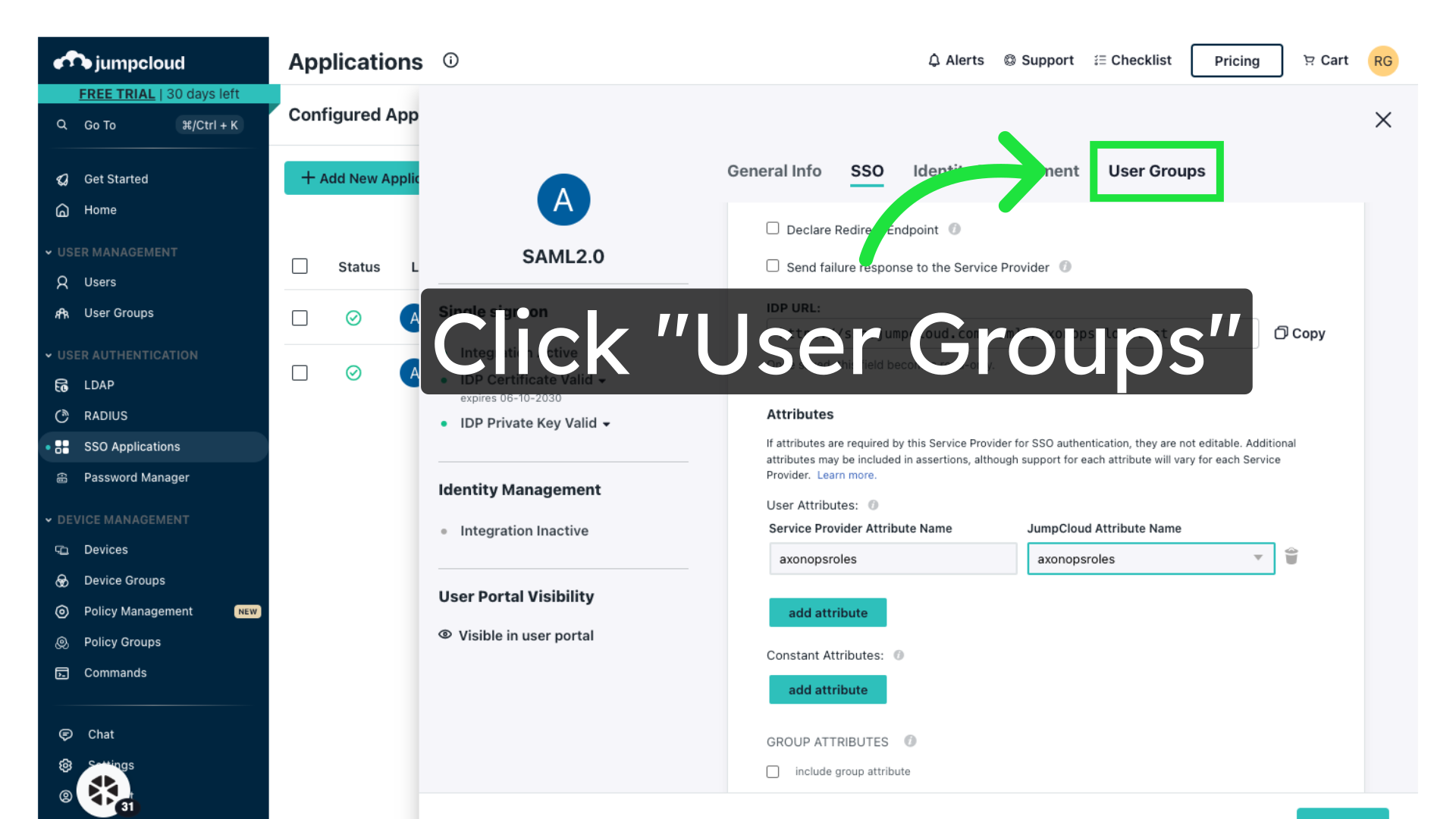

17. Allow groups access to AxonOps¶
Access the User Groups section.

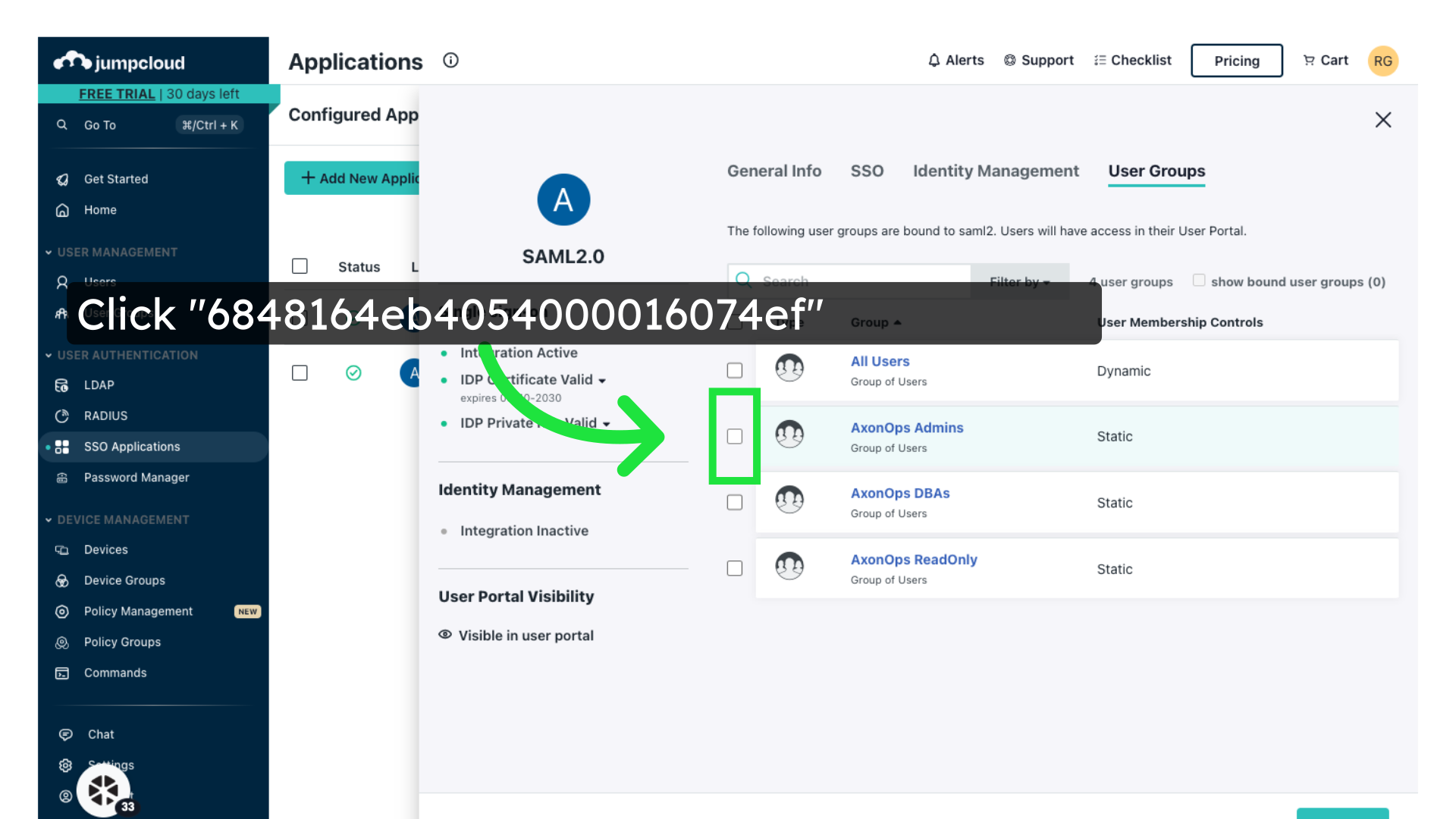

18. Select groups that can access AxonOps¶
Tick all groups that you wish to provide access to AxonOps
19. Return to the "SSO" tab¶
20. Click "Export Metadata"¶
Export XML metadata from JumpCloud. You will need this to configure AxonOps.

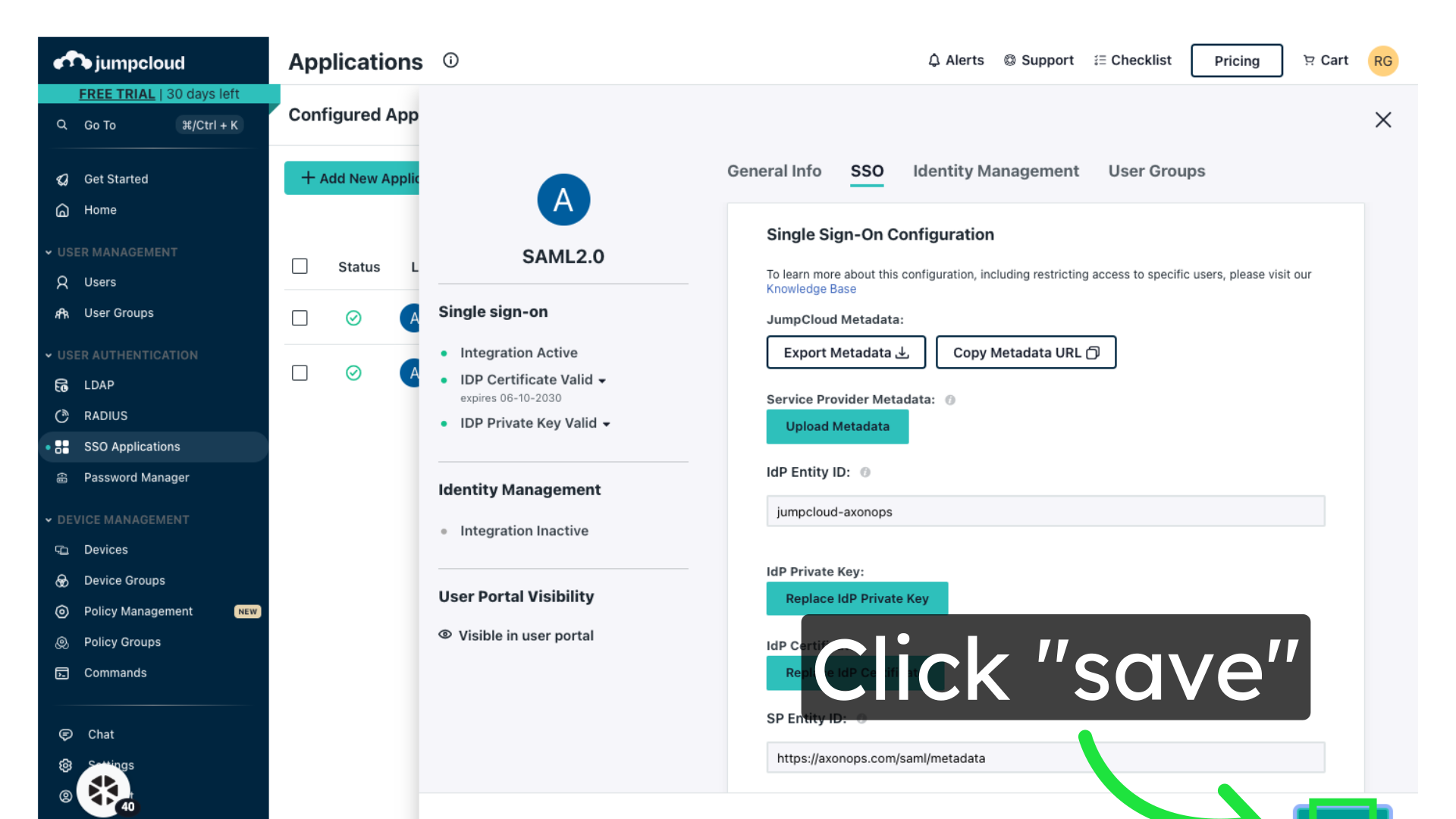

21. Click "save"¶
Save the changes.
