Cassandra with AxonOps on Kubernetes

Introduction

The following shows how to install AxonOps for monitoring cassandra. This process specifically requires the official cassandra helm repository.

Using minikube

The deployment should work fine on latest versions of minikube as long as you provide enough memory for it.

minikube start --memory 8192 --cpus=4
minikube addons enable storage-provisioner

:warning: Make sure you use a recent version of minikube. Also check available drivers and select the most appropriate for your platform

Helmfile

Overview

As this deployment contains multiple applications we recommend you use an automation system such as Ansible or Helmfile to put together the config. The example below uses helmfile.

Install requirements

You would need to install the following components:

• helm: https://helm.sh/docs/intro/install/
• helmfile: https://github.com/roboll/helmfile/releases

Alternatively you can consider using a dockerized version of them both such as https://hub.docker.com/r/chatwork/helmfile

Config files

The values below are set for running on a laptop with minikube, adjust accordingly for larger deployments.

helmfile.yaml

---
repositories:
  - name: axonops
    url: helm.axonops.com/axonops-public/axonops-helm/axonops
    oci: true
  - name: bitnami
    url: https://charts.bitnami.com/bitnami
  - name: ckotzbauer
    url: https://ckotzbauer.github.io/helm-charts
releases:
  - name: axon-elastic
    namespace: {{ env "NAMESPACE" | default "axonops" }}
    chart: "bitnami/elasticsearch"
    version: '12.8.1'
    wait: true
    values:
      - fullnameOverride: axon-elastic
      - imageTag: "7.8.0"
      - data:
          replicas: 1
          persistence:
            size: 1Gi
            enabled: true
            accessModes: [ "ReadWriteOnce" ]
      - curator:
          enabled: true
      - coordinating:
          replicas: 1
      - master:
          replicas: 1
          persistence:
            size: 1Gi
            enabled: true
            accessModes: [ "ReadWriteOnce" ]

  - name: axonops
    namespace: {{ env "NAMESPACE" | default "axonops" }}
    chart: "digitalis/axonops"
    wait: true
    values:
      - values.yaml

  - name: cassandra
    namespace: cassandra
    chart: "digitalis/cassandra"
    wait: true
    values:
      - values.yaml

  - name: cadvisor
    namespace: kube-system
    chart: ckotzbauer/cadvisor
    version: 1.2.0
    values:
      - container:
          additionalArgs:
            - --housekeeping_interval=5s                       # kubernetes default args
            - --max_housekeeping_interval=10s
            - --event_storage_event_limit=default=0
            - --event_storage_age_limit=default=0
            - --disable_metrics=percpu,process,sched,tcp,udp    # enable only diskIO, cpu, memory, network, disk
            - --docker_only
      - image:
          repository: gcr.io/cadvisor/cadvisor
          tag: v0.37.0

values.yaml

---
persistence:
  enabled: true
  size: 2Gi
  accessMode: ReadWriteMany

podSettings:
  terminationGracePeriodSeconds: 300

image:
  tag: 3.11.6
  pullPolicy: IfNotPresent

config:
  cluster_name: digitalis
  cluster_size: 2
  dc_name: dc1
  seed_size: 1
  num_tokens: 256
  max_heap_size: 512M
  heap_new_size: 512M
  endpoint_snitch: GossipingPropertyFileSnitch

env:
  JVM_OPTS: "-javaagent:/var/lib/axonops/axon-cassandra3.11-agent.jar=/etc/axonops/axon-agent.yml"

serviceAccount:
  create: true
  rules:
  - apiGroups:
    - ""
    resources:
    - nodes
    - nodes/metrics
    - pods
    verbs:
    - get
    - list
    - watch
  - nonResourceURLs:
    - /metrics
    verbs:
    - get

extraVolumes:
  - name: axonops-agent-config
    configMap:
      name: axonops-agent
  - name: axonops-shared
    emptyDir: {}
  - name: axonops-logs
    emptyDir: {}

extraVolumeMounts:
  - name: axonops-shared
    mountPath: /var/lib/axonops
    readOnly: false
  - name: axonops-agent-config
    mountPath: /etc/axonops
    readOnly: true
  - name: axonops-logs
    mountPath: /var/log/axonops

extraContainers:
  - name: axonops-agent
    image: digitalisdocker/axon-agent:latest
    env:
      - name: AXON_AGENT_VERBOSITY
        value: "1"
      - name: AXON_AGENT_ARGS
        value: "-v 1"
      - name: DATA_FILE_DIRECTORY
        value: "/var/lib/cassandra"
      - name: CASSANDRA_POD_NAME
        valueFrom:
          fieldRef:
            fieldPath: metadata.name
      - name: CASSANDRA_POD_NAMESPACE
        valueFrom:
          fieldRef:
            fieldPath: metadata.namespace
      - name: CASSANDRA_NODE_NAME
        valueFrom:
          fieldRef:
            fieldPath: spec.nodeName
      - name: CASSANDRA_POD_IP
        valueFrom:
          fieldRef:
            apiVersion: v1
            fieldPath: status.podIP
    volumeMounts:
      - name: axonops-agent-config
        mountPath: /etc/axonops
        readOnly: true
      - name: axonops-shared
        mountPath: /var/lib/axonops
        readOnly: false
      - name: axonops-logs
        mountPath: /var/log/axonops
      - name: data
        mountPath: /var/lib/cassandra


axon-server:
  global:
    customer: minikube
    baseDomain: axonops.com

  elasticHost: http://axon-elastic-elasticsearch-master.axonops:9200
  dashboardUrl: https://axonops.axonops.com

  image:
    repository: digitalisdocker/axon-server
    tag: latest
    pullPolicy: IfNotPresent
  config:
    extraConfig:
      cql_hosts:
        - cassandra-0.cassandra.cassandra.svc.cluster.local
      cql_username: "cassandra"
      cql_password: "cassandra"
      cql_local_dc: dc1
      cql_proto_version: 4
      cql_max_searchqueriesparallelism: 100
      cql_batch_size: 100
      cql_page_size: 100
      cql_autocreate_tables: false
      cql_retrypolicy_numretries: 3
      cql_retrypolicy_min: 2s
      cql_retrypolicy_max: 10s
      cql_reconnectionpolicy_maxretries: 10
      cql_reconnectionpolicy_initialinterval: 1s
      cql_reconnectionpolicy_maxinterval: 10s
      cql_keyspace_replication: "{ 'class': 'NetworkTopologyStrategy', 'dc1': 1 }"
      cql_metrics_cache_max_size: 128  #MB
      cql_metrics_cache_max_items : 500000

axon-dash:
  replicaCount: 1
  config:
    axonServerUrl: http://axonops-axon-server:8080
  service:
    type: NodePort
  ingress:
    enabled: true
    annotations:
      nginx.ingress.kubernetes.io/ssl-redirect: "true"
    hosts:
      - hosts: axonops.axonops.com
        paths:
          - /
  image:
    repository: digitalisdocker/axon-dash
    tag: latest
    pullPolicy: IfNotPresent
  autoscaling:
    enabled: true
  resources:
    limits:
      cpu: 500m
      memory: 512Mi
    requests:
      cpu: 50m
      memory: 128Mi

axon-agent.yml

axon-server:
    hosts: "axonops-axon-server.axonops" # Specify axon-server IP axon-server.mycompany.
    port: 1888

axon-agent:
    org: "digitalis"
    human_readable_identifier: "axon_agent_ip" # one of the following:

NTP:
    host: "pool.ntp.org" # Specify a NTP to determine a NTP offset

cassandra:
  tier0: # metrics collected every 5 seconds
      metrics:
          jvm_:
            - "java.lang:*"
          cas_:
            - "org.apache.cassandra.metrics:*"
            - "org.apache.cassandra.net:type=FailureDetector"

  tier1:
      frequency: 300 # metrics collected every 300 seconds (5m)
      metrics:
          cas_:
            - "org.apache.cassandra.metrics:name=EstimatedPartitionCount,*"

  blacklist: # You can blacklist metrics based on Regex pattern. Hit the agent on http://agentIP:9916/metricslist to list JMX metrics it is collecting
    - "org.apache.cassandra.metrics:type=ColumnFamily.*" # duplication of table metrics
    - "org.apache.cassandra.metrics:.*scope=Repair#.*" # ignore each repair instance metrics
    - "org.apache.cassandra.metrics:.*name=SnapshotsSize.*" # Collecting SnapshotsSize metrics slows down collection
    - "org.apache.cassandra.metrics:.*Max.*"
    - "org.apache.cassandra.metrics:.*Min.*"
    - ".*999thPercentile|.*50thPercentile|.*FifteenMinuteRate|.*FiveMinuteRate|.*MeanRate|.*Mean|.*OneMinuteRate|.*StdDev"

  JMXOperationsBlacklist:
    - "getThreadInfo"
    - "getDatacenter"
    - "getRack"

  DMLEventsWhitelist: # You can whitelist keyspaces / tables (list of "keyspace" and/or "keyspace.table") to log DML queries. Data is not analysed.
  # - "system_distributed"

  DMLEventsBlacklist: # You can blacklist keyspaces / tables from the DMLEventsWhitelist (list of "keyspace" and/or "keyspace.table") to log DML queries. Data is not analysed.
  # - system_distributed.parent_repair_history

  logSuccessfulRepairs: false # set it to true if you want to log all the successful repair events.

  warningThresholdMillis: 200 # This will warn in logs when a MBean takes longer than the specified value.

  logFormat: "%4$s %1$tY-%1$tm-%1$td %1$tH:%1$tM:%1$tS,%1$tL %5$s%6$s%n"

Start up

Create Axon Agent configuration

kubectl create ns cassandra
kubectl create configmap axonops-agent --from-file=axon-agent.yml -n cassandra

Run helmfile

With locally installed helm and helmfile

cd your/config/directory
hemlfile sync

With docker image

docker run --rm \
    -v ~/.kube:/root/.kube \
    -v ${PWD}/.helm:/root/.helm \
    -v ${PWD}/helmfile.yaml:/helmfile.yaml \
    -v ${PWD}/values.yaml:/values.yaml \
    --net=host chatwork/helmfile sync

Access

Minikube

If you used minikube, identify the name of the service with kubectl get svc -n monitoring and launch it with

minikube service axonops-axon-dash -n monitoring

LoadBalancer

Find the DNS entry for it:

kubectl get svc -n monitoring -o wide

Open your browser and copy and paste the URL.

Troubleshooting

Check the status of the pods:

kubectl get pod -n monitoring
kubectl get pod -n cassandra

Any pod which is not on state Running check it out with

kubectl describe -n NAMESPACE pod POD-NAME

Storage

One common problem is regarding storage. If you have enabled persistent storage you may see an error about persistent volume claims (not found, unclaimed, etc.). If you're using minikube make sure you enable storage with

minikube addons enable storage-provisioner

Memory

The second most common problem is not enough memory (OOMKilled). You will see this often if your node does not have enough memory to run the containers or if the heap settings for Cassandra are not right. kubectl describe command will be showing Error 127 when this occurs.

In the values.yaml file adjust the heap options to match your hardware:

  max_heap_size: 512M
  heap_new_size: 512M

Minikube

Review the way you have started up minikube and assign more memory if you can. Also check the available drivers and select the appropriate for your platform. On macOS where I tested hyperkit or virtualbox are the best ones.

minikube start --memory 10240 --cpus=4 --driver=hyperkit

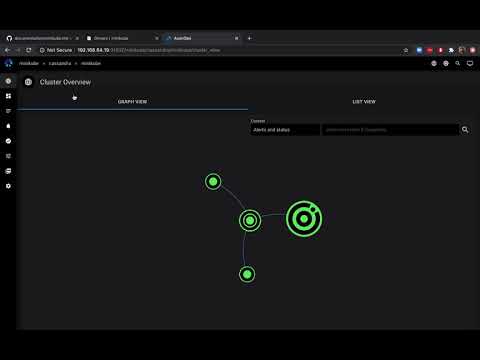

Putting it all together
